Implementing Survey in Qualtrics

Step 4: Creating Survey Proceeding Logic

Here, we're going to set up block branch logic. This logic is for making respondents who did not list any names in the two name generators skip the name interpreters and density questions.

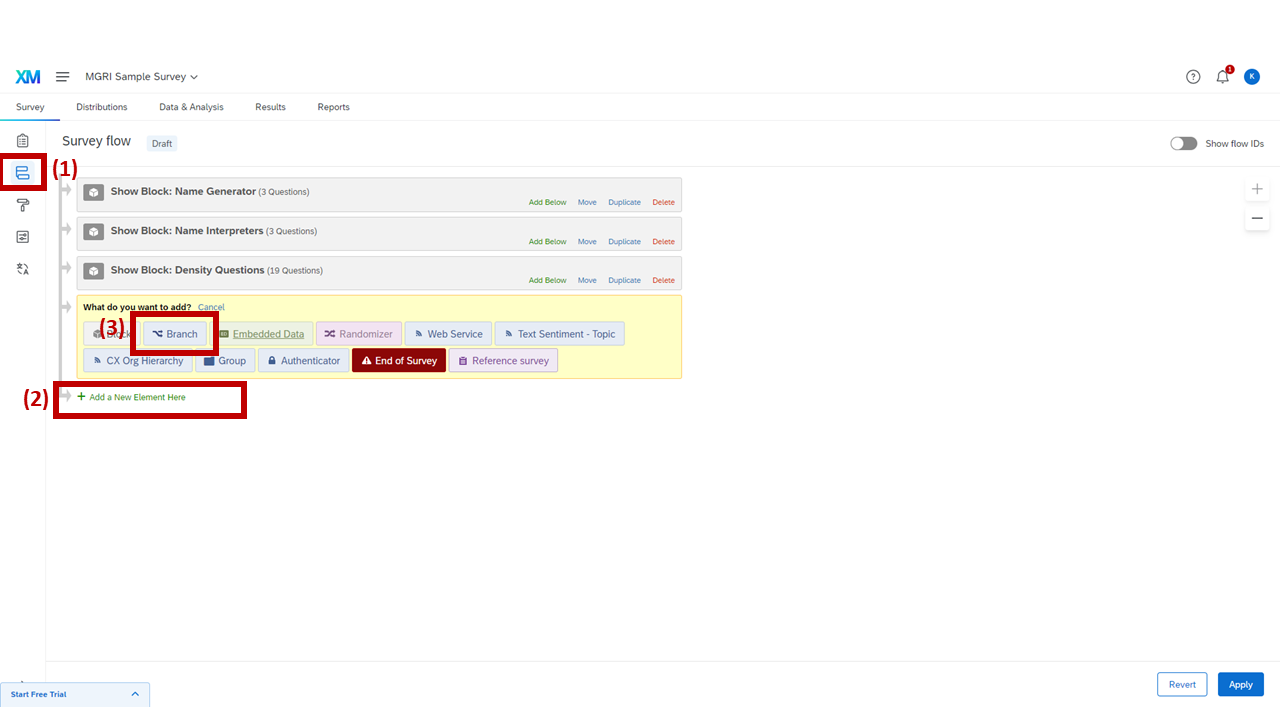

Screenshot: Survey Flow panel — Survey Flow button highlighted, Add a New Element Here, Branch options

Opening Survey Flow and adding a Branch element

1

Click "Survey Flow" (highlighted).

2

Click "Add a New Element Here."

3

Click "Branch."

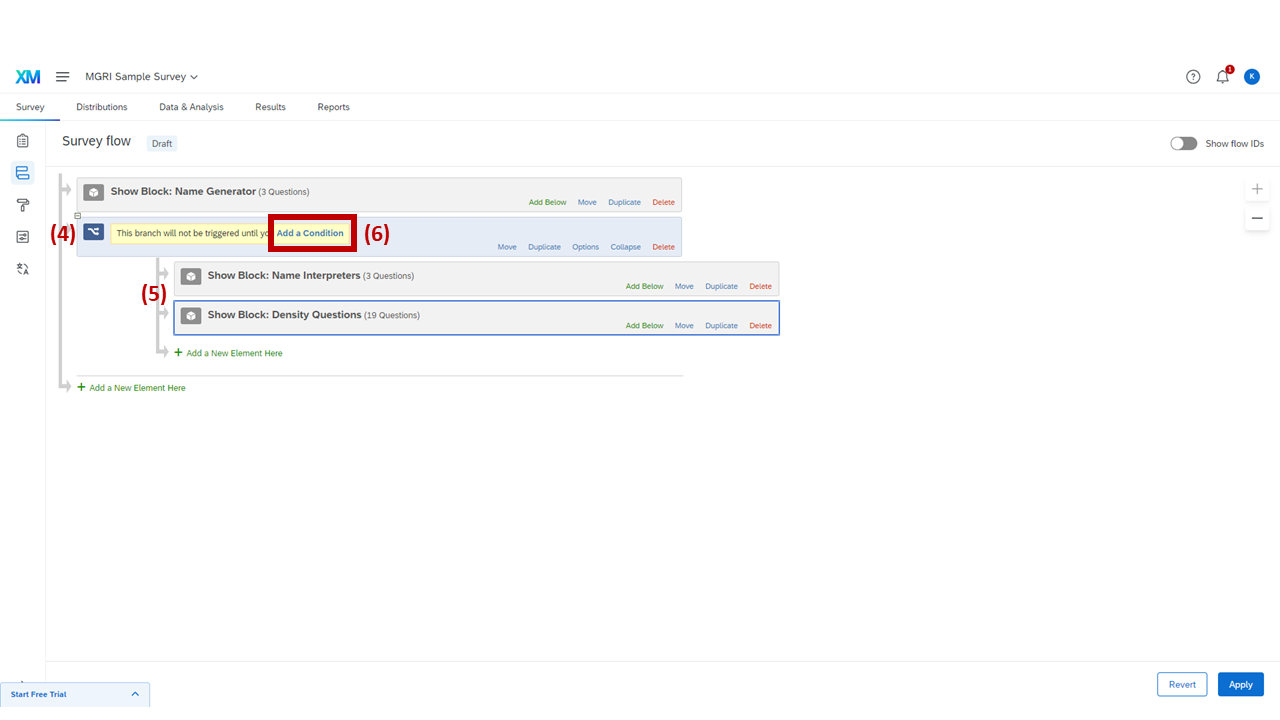

Screenshot: Moving Branch element under Name Generator block, moving Name Interpreters and Density Questions under it

Rearranging blocks under the Branch element

4

Move the created element to be under the "Name Generator" block.

5

Move "Name Interpreters" and "Density Questions" to be under the created element.

6

Click "Add a Condition."

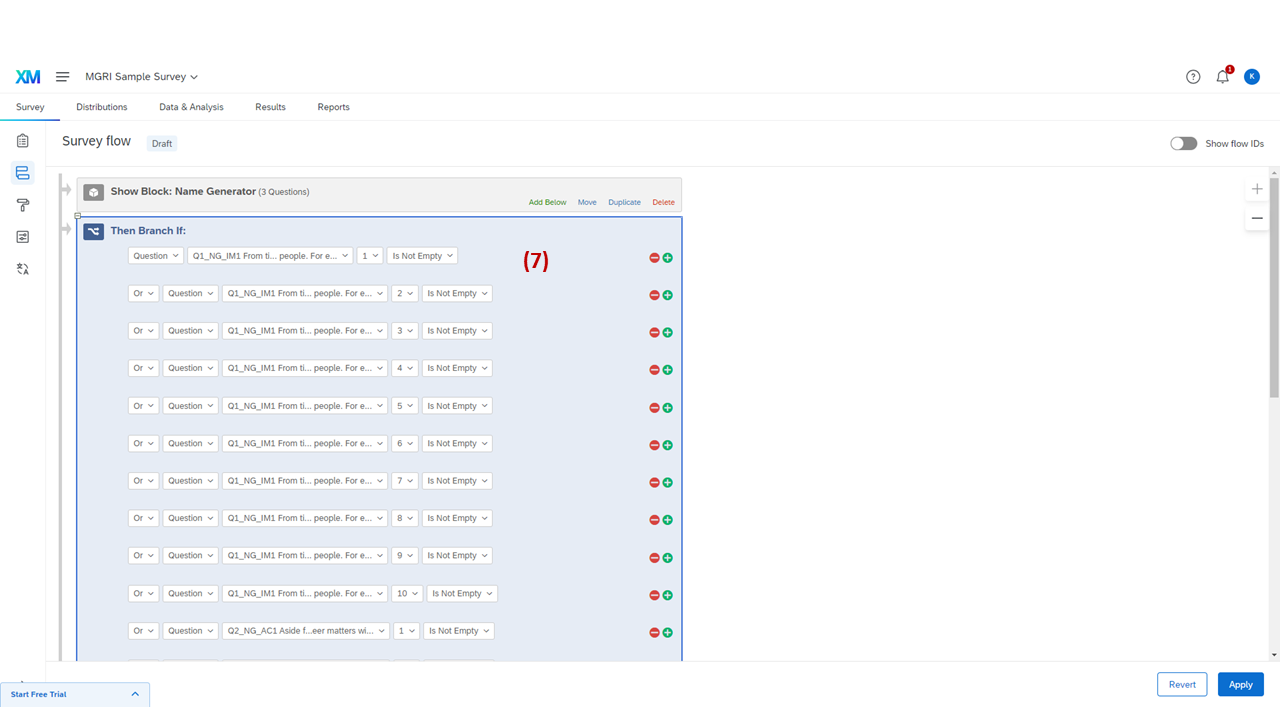

Screenshot: Branch logic conditions dialog showing IM and AC generator conditions

Setting up the "Then Branch If" logic conditions

7

Add "Then Branch If" logic. Add logic as follows:

Logic Type Name Field Name Condition Type
Or Question Q1_NG_IM1 1, 2, 3, … K Is Not Empty
Or Question Q2_NG_AC1 1, 2, 3, … K Is Not Empty

This logic lets only the respondents who listed any name in the name generators see the name interpreters and density questions. Respondents who did not list any names in the IM or AC generators will not see any of the name interpreters and density questions.

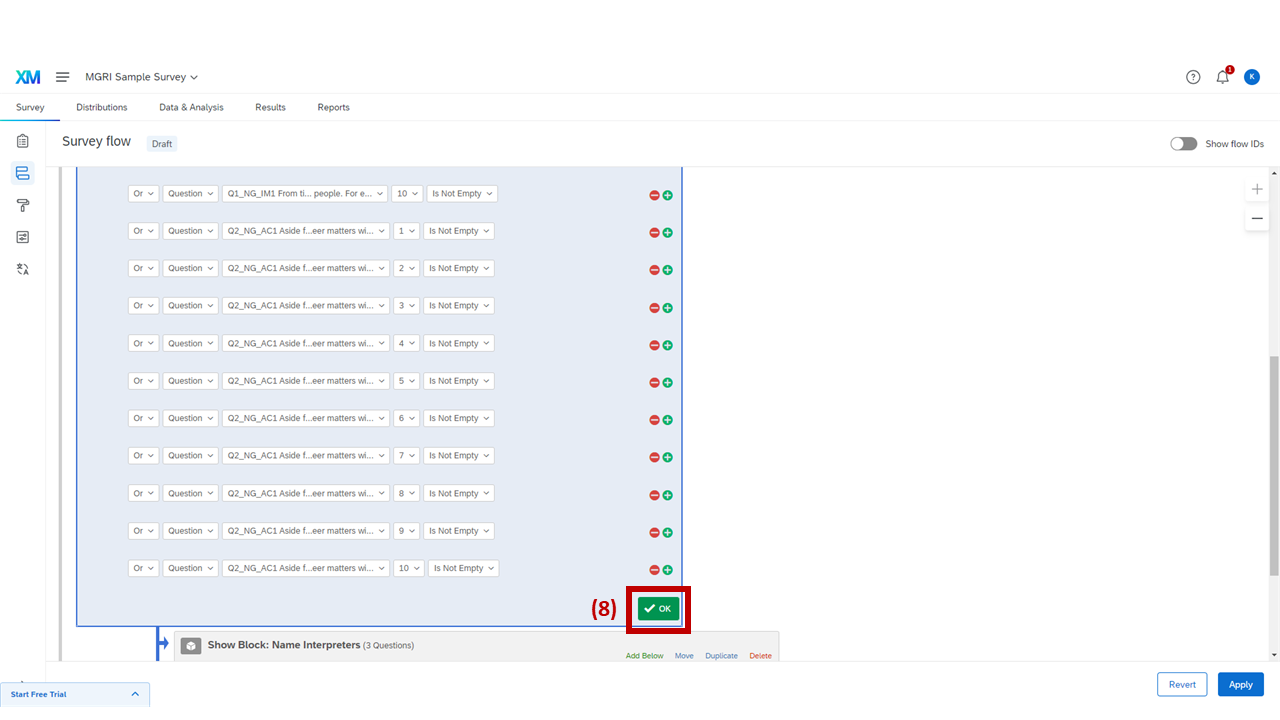

Screenshot: Completed branch logic dialog with Ok and Apply buttons

Clicking Ok and Apply to save the branch logic

8

After adding all conditions, click "Ok" and "Apply" (right down corner).
